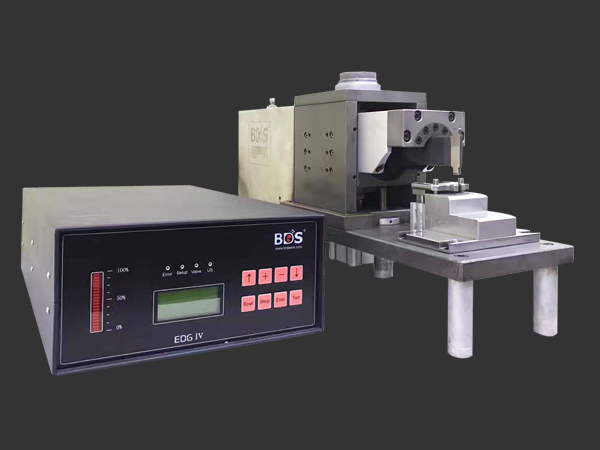

Ultrasonic metal welding is a fast, clean and economical technique which has been established over many years and widely used in the automotive industry. like wire harness welding .solar panel, Electric motors, transformer and capacitors etc. Another ultrasonic metal welding used good in joining the dissimilar materials ,it’s a good example is that nickel and aluminum connections, foil layers and metal meshes are often ultrasonically welded together.
SPECIFICATIONS
Model | RS20-R | RS35-R |
Frequency | 20KHz | 35KHz |
Output power | 1000W|2000W |3000W|4000W | 900W |
Welding area(mm) | 40 m/m φ | 20m/m φ |
Head trip | 30mm | 30mm |
Dimensions(L*W*H)mm | 470X320X1300 mm | 470X320X1300 mm |
Net weight | 60 kg | 40kg |
APPLICATIONS
- Lithium-Ion/Lithium Polymer battery connections
- Aluminium and copper foils
- Wire terminals
- Swithches
- Ribbon Cables
- Connectors
- Air Bag Sensors
- Metal tube welding /cutting ,gas-tight
