Products
FEATURES
1. Japan original piezoelectric ceramic transducer, the output power is more strong and life is longer
2. Special steel booster ,it's solid mount ,life is long
3. Levelling easy adjustable
4. the ultrasonics is average and stable
5. Especially suitable for large objects and waterproof precision plastic products welding.
6. Imported Aluminium 7075 material on horn ,titanium and steel horn optional
7.CE approved
8. We can according to your requirement to design the automatic machine with your production line
SPECIFICATIONS:
Model | OS005 | OS005 | OS005 | OS005 | OS005 |
Frequency | 20KHZ | 20KHz | 15KHZ | 15KHZ | 15KHz |
Output Power | 1,500W | 2000W | 2,600W | 3200W | 4200w |
Welding Capability | 130 m/m φ | 160 ~ 200 m/m φ | 160 ~ 200 m/m φ | 200 ~ 250 m/m φ | 250 ~ 300 m/m φ |
Dimension | 530X390X150mm | 530X390X150mm | 530X390X150mm | 530X390X150mm | 530X390X150mm |
Net Weight | 16 kg | 16 kg | 16 kg | 18kg | 22 KG |
Line Source | 220V 10A 1P | 220V 10A 1P | 220V 10A 1P | 220V 15A 1P | 220v 15A 1P |

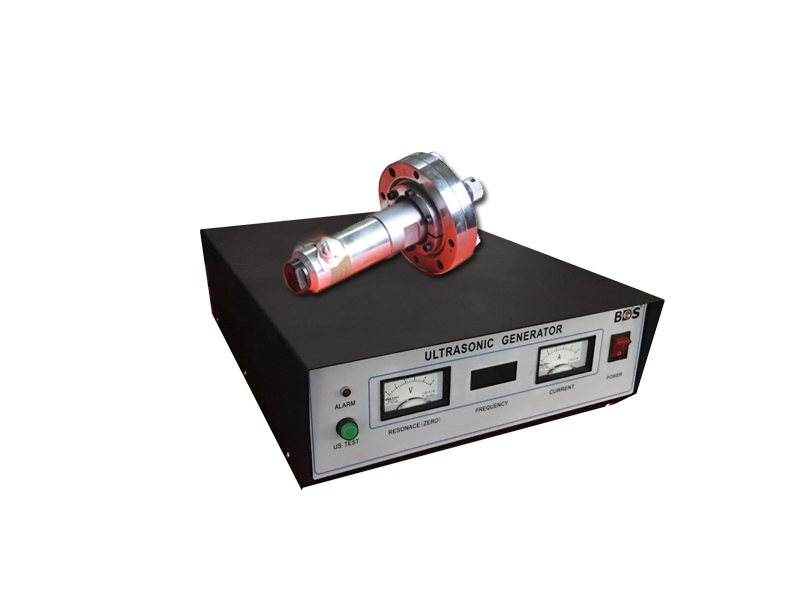

| 15KHz/4200W Ultrasonic Generator
|

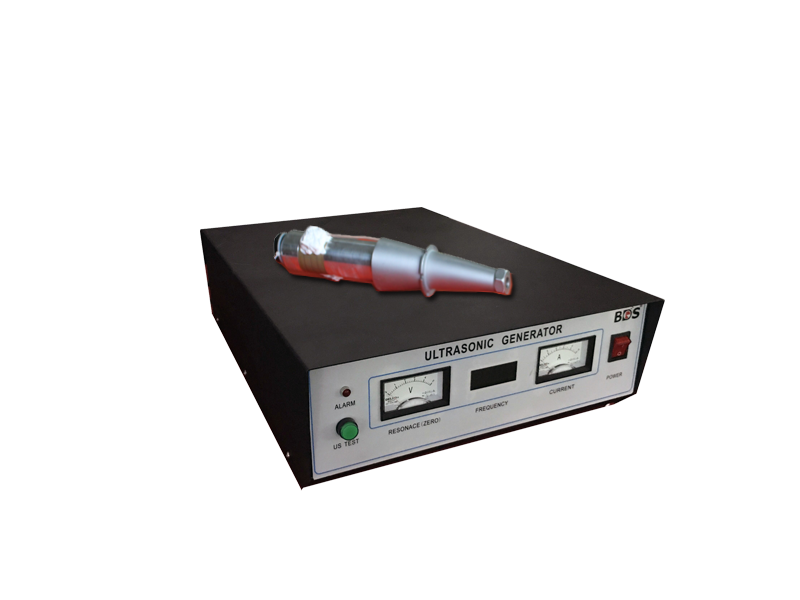

| 15KHz Ultrasonic Generator |
 |

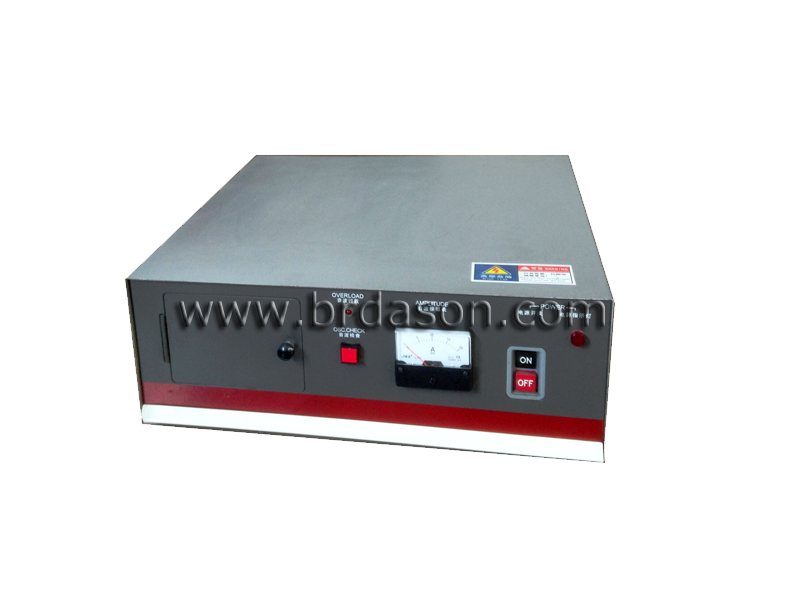

| 20KHz Ultrasonic Generator |
 |
